Product Description

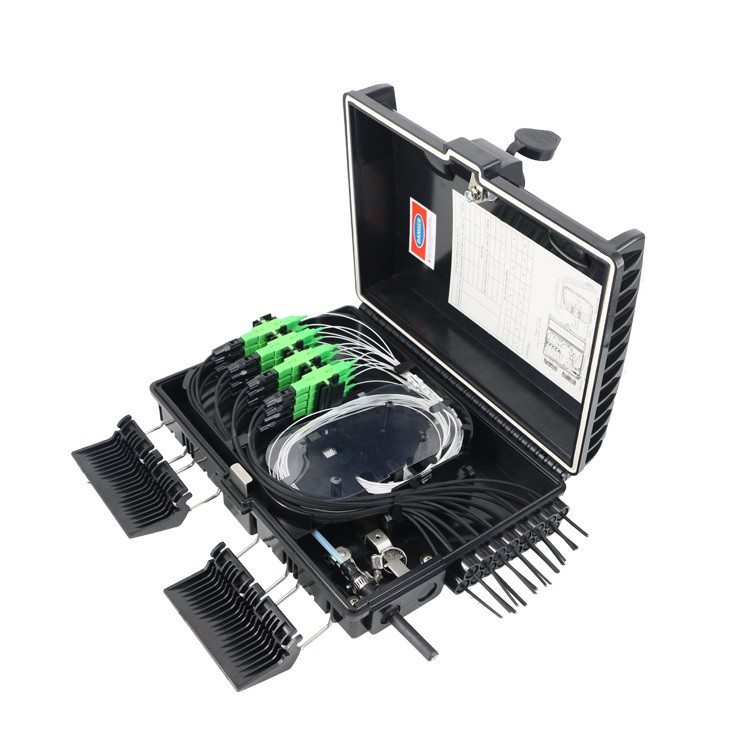

16 Core Fiber Optic Distribution Box -8 Mini/UPC
This model JZ-1321-16G is a fiber optical distribution box that provides a cost-effective secure solution for the feeder cable to connect with drop cable in
FTTx communication network system. It is designed to accommodate one mid-span cable as feeder cable and 16 drop cables as outlet.
| Item Code | JZ-1321-16G |
| Dimensions | 292*218*83mm |
| Material | PC+ABS |
| Work Temperature | -40 C ~+85 C |
| Inlet/Outlet ports | 2/16 |
| Inlet port type | mid-span/cable bland |
| Heat shrink capacity | 16 |
| PLC type | mini PLC |
