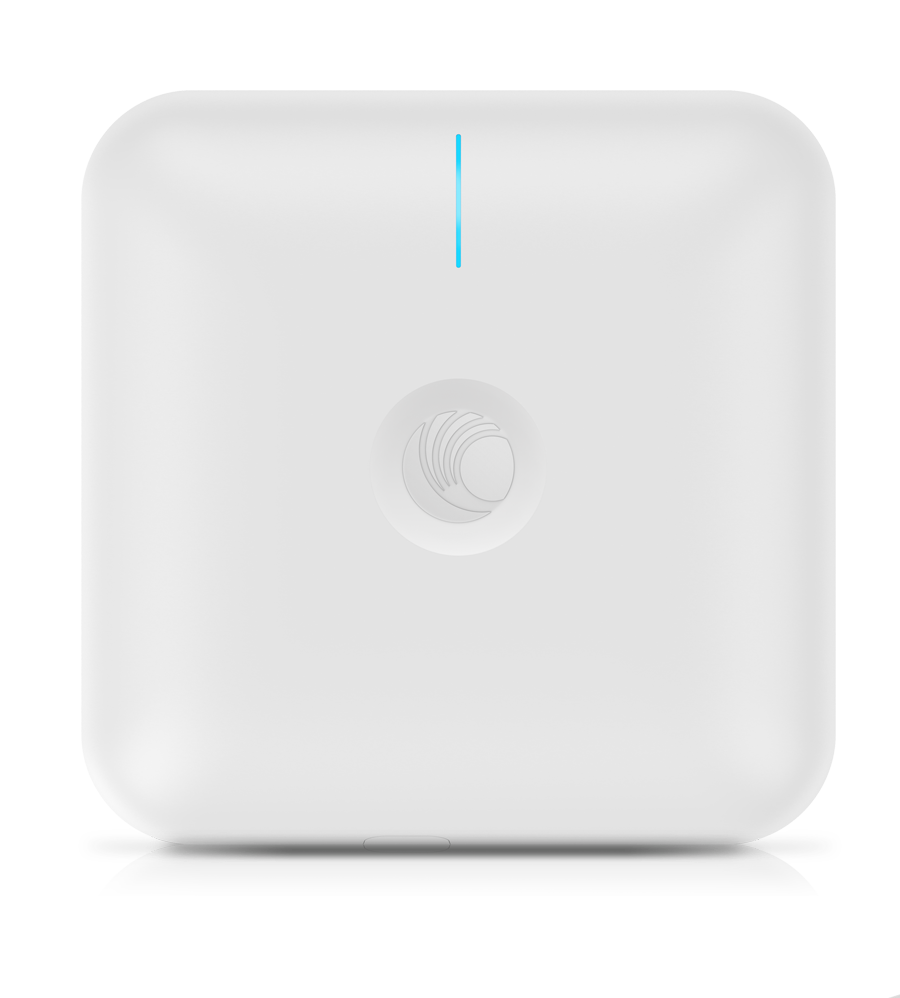

The plenum-rated e410 with 2×2 MIMO packs a max transmit power of 25 dBm and is DFS certified to utilize additional reserved 5 GHz DFS channels – offering more flexibility than ever for both coverage.
The compact low profile 802.11ac Wave 2 Multiuser MIMO (MU-MIMO) beamforming, high speed E410 Enterprise access point future proofs your Indoor access point deployments and is perfect for Schools, Indoor public spaces, Malls, Hotels and Resorts (Hospitality), Coffee shops, Multi-dwelling units (MDUs) or just about any place indoor that needs reliable high performing access points.
High Performance Enterprise
Affordable enterprise-grade high-density 802.11ac Wave 2 indoor access points for schools, indoor public spaces, malls, hotels and resorts, coffee shops, multi-dwelling units (MDUs), or just about any place indoors that needs reliable, high-performance indoor Wi-Fi.
A powerful business wireless internet solution targeted for small and medium-sized enterprises.
Cambium’s cnMaestro Cloud-based or on-premises controller offers zero touch onboarding, inventory tracking, monitoring, easy configuration, dashboard views, and more.
- Powerful simplicity
No controller. No expensive licensing fees – just seamless controller-less roaming for up to 1,000 clients.
- Monetize your Wi-Fi service
Create fast guest access features with semi-customized splash pages, and time- and rate-limited access. Access options like social login and vouchers available with purchase are ideal for guest Wi-Fi in hotels, coffee shops, and offices.
- Indoor/Outdoor Wi-Fi mesh for flexibility
Customize and expand networks easily with wireless mesh that can integrate or cover multiples of both the indoor and outdoor modules.
- High capacity coverage
The plenum-rated with 256-user capacity and up to 16 SSIDs ensures network adaptability to the dynamics of growing demand, with advanced features like airtime fairness, Automatic Channel Scanning (ACS), and high client device speeds with band steering.
- License-free affordable quality
All cnPilot e-series AP sales include a free controller, no AP management license fees, and no hidden charges.
Controller Managed + Autonomous
Managed by Cambium’s cnMaestro cloud controller or On-premises controller, the cnPilot E410 management includes:
- Zero touch onboarding
- Inventory tracking
- Mass Configuration
- Dashboard views with Alarms
- Mass upgrade
- Hierarchical device organization
Controller-Less Roaming. Powerful SImplicity
The E410 supports seamless roaming for up to 1,000 clients without needing a controller in the network! Hotspot portal hosting on the AP itself offers controller-less simplicity.
Monetize: Vouchers. Social Login
Monetize your Wi-Fi service: cnMaestro’s Guest access feature supports splash page hosting, social login and payment gateway. All built-in power packed features available right on the controller! These features along with the ability to create time, rate and volume limited traffic profiles along with vouchers for temporary guest access makes the E410 ideal for Hotels, Coffee shops, Campgrounds, and Office guest Wi-Fi.
Service Aware WLANs. Better User Experience.
Nothing is more frustrating than connecting to an Access point, but not getting to the Internet! When connection to a critical resource such as an external Gateway or AAA is down, the E410 can turn off the impacted SSIDs enabling client devices to select a different working neighboring Access point.
Indoor/Outdoor Wi-Fi Mesh. Flexibility.
Indoor meshing across multiple E410s or Indoor/Outdoor meshing across the Indoor E410 and the Outdoor E500 offers a convenient way to easily expand Wi-Fi coverage without wires.
Coverage, Capacity. Speed.
The plenum rated E410, packs a max transmit power of 25 dBm, and is DFS certified to make use of additional reserved 5GHz DFS channels, offering more flexibility than ever for both coverage and capacity. Throughput management via Airtime fairness, increased performance by Automatic channel scanning (ACS), and higher client device speeds from Band steering ensure your network can adapt to the dynamics of ever changing client behaviors.
High Density, Highly Available
A capacity of 256 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the E410 combines high density with high availability.
License Free High Performance. One Low Price.
The 802.11ac wave 2 E410 comes with a free controller, and no AP management license fees. No hidden charges. Affordable.
Adaptive Wi-Fi Architecture:
A variety of access architectures have evolved over two decades of increasing Wi-Fi use within organizations. Some have been driven by product limitations; others have been created to meet security or regulatory requirements.
Among the many questions that arise during network design, administrators need to address the following:
- Management – Will the operation benefit more from a cloud-based or on-premises management system?
- Traffic separation – Are the organization’s requirements best served by local breakout of Wi-Fi traffic, or the extra separation of traffic made possible by tunneling user data to a controller?
Many vendors’ solutions lock administrators in to a particular deployment model or network traffic distribution system, but Cambium Networks believes that Wi-Fi network design should conform to the organization’s needs, not the other way around.
Cambium Networks cnPilot’s Adaptive Wi-Fi architecture enables Wi-Fi integration with existing wired network infrastructure and the cnMaestro™ management system provides scalable, flexible management in addition to Wi-Fi controller features.
The Key Architectural Choices Are:
- Where does your user data traffic go? The Wi-Fi AP can bridge it onto Ethernet (also known as local break out). Another option is to tunnel it over an IP-based protocol to a tunnel terminator, which can be a wireless controller or a different third party concentrator.
- Where does your Wi-Fi controller and management system run? Some organizations prefer the convenience of a vendor operated cloud-based management system. Others prefer in-house operation – usually with controllers that can manage tens of thousands of access points. For very small deployments, it can make most sense to configure an AP to perform the duties of a controller.
Regardless of your requirements, cnPilot and cnMaestro offer customizable options for a complete Wi-Fi solution that meets your needs.
|cnPilot E410 Specifications|
|Access Point Specifications|
|Standards||IEEE 802.11a/b/g/n/ac Wave 2 |
Others: 802.11 h/d/r/u/w/
|MIMO Streams||2x2 MIMO streams|
|Range||180 m (650 Ft)|
|Max Data Rates||1.3 Gbps (1,267 Mbps)|
|SSID||16 SSIDs across 2 radios|
|Antenna gain||4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz)|
|Multi-Hop Mesh||Yes. Supported on Indoor & Outdoor access points. |
Mesh auto-recovery supported
|Antenna Coverage||Omni (360°)|
|Ethernet Ports||One (1) x 1 Gigabit Ethernet (10/100/1000 Mbps)|
|Frequency bands||2.4 GHz: 2400-2484 MHz |
5 GHz: 5150-5850 MHz with DFS band support
|Power Supply||Standard 802.3af injector (supplied) or any PoE switch|
|Power Consumed||13W (max)|
|Dimensions||170 x 170 x 41 mm (17 x 17 x 4.1 cm)|
|Temperature||0°C to +50°C|
|LED||Single LED window with tri color (Amber, Blue, Green) display|
|Max TX Power||+25 dBm|
|Physical Lock||Kensington key hole|
|Controller modes|| |
|Secure WLAN|| |
|Captive Portal/ Guest Access|| |
|Accounting||Yes. Supports RADIUS based accounting to multiple AAAs|
|Scheduled SSID||Turn SSID ON/OFF on a daily/weekly/time of day basis|
|Data Limiting||Dynamic rate limiting of client traffic per SSID & per client|
|Controller-Less Fast Roaming||Yes. 802.11r, Opportunistic Key Caching supports Enhanced roaming Disconnect for sticky clients|
|Meshing||Multi-hop meshing supported (3)|
|ACS: Automatic Channel Selection||Yes. Set at start or run periodically|
|Firewall||Yes. NAT logging|
|ACL, DNS-ACL||Yes. L2, L3 or DNS based access control|
|Band Steering Band Balancing||Yes|
|APIs||Presence Locationing API|
|Certifications||FCC, ETSI, CE |
EN 60601-1-2 (Medical EMC)
UL2043 Plenum rated
|cnMaestro Wi-Fi Controller|
|Cloud & On-Premises||Available in the Cloud or as a downloadable VMware® image (Onpremises)|
|Common Manager||Manage both cnPilot and Cambium’s ePMP and PMP 450 radios|
|Troubleshooting||Single screen wireless view, showing Wireless backhaul, Access point & clients|
|Frictionless On-Boarding||Secure large scale bulk onboarding |
Zero touch bulk configuration and provisioning
|Device Inventory||Inventory tracking and reporting|
|Monitoring||Insightful status monitoring; rich visibility to device lifecycle |
Alarms and events management – Critical/Major/Minor
Statistics graphs and table display
Alarm traffic light display
|Key Stats Monitoring||7 day historic stats|
|Portal Hosting||Setup Hotspot portals segmented by SSIDs|
|Voucher||Time and Rate limited Guest access portals with Vouchers for 1,000 client devices|
|Social Login||Facebook, Google|
|Site Grouping||Group sets access points for convenient management|
|Client Insight||Shows client history with aggregate client manufacturer views|
|Multiple Admins||Multiple admin provisioning per account|
|Software Upgrade||Ability to upgrade multiple WiFi devices at a time|
