Ubiquiti UAP-AC-HD-US Unifi Wave 2 Enterprise Wi-Fi Access Point US Version

Ubiquiti UAP-AC-HD-US Unifi Wave 2 Enterprise Wi-Fi Access Point (UAP-AC-HD-US)

Ubiquiti UAP-AC-HD-US Unifi Wave 2 Enterprise Wi-Fi Access Point US Version

$325.00
RRP: $349.00 (You save $24.00)
SKU
UAP-AC-HD-US
Brand
Weight
4.00 LBS
Rating
0 Stars
Availability
Usually Ships in 24 Hours
Pin It
Product Details Extra Info Similar Products

Product Description

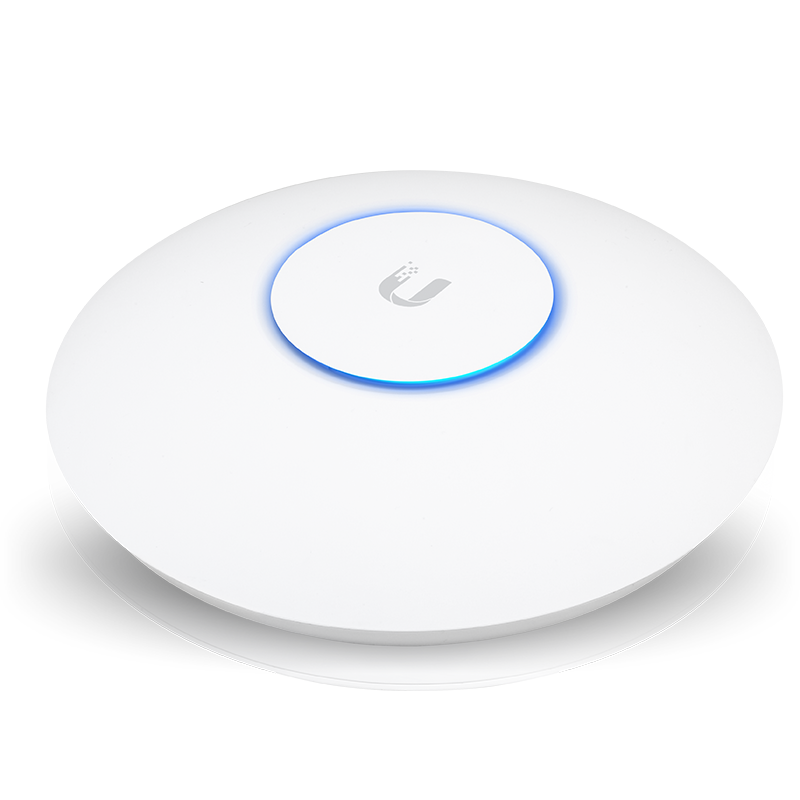

The UAP-AC-HD-US Wave 2 Enterprise Wi-Fi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4x4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits. Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.

The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

UniFi Controller

View Your RF Environment

Use the RF environment functionality of the UniFi AC HD AP to detect and troubleshoot nearby interference, analyze radio frequencies, choose optimal AP placement, and configure settings.

Power RF Performance

Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.

Detailed Analytics

Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Wireless Uplink

Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.

Guest Portal/Hotspot Support

Easy customization and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.

All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards
• Built-in support for voucher-based authentication
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund
• Full customization and branding of Hotspot portal pages

Multi-Site Management

A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.

WLAN Groups

The UniFi Controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio. Each WLAN can be VLAN tagged. Dynamic VLAN tagging per Wi-Fi station (or RADIUS VLAN) is also supported.

802.11ac Technology

MU-MIMO

Assuming the same conditions, a Wave 2 AP provides up to 75% improvement overall over a Wave 1 AP. This improvement increases wireless performance and/or serves more clients at the same performance level.

4x4 Spatial Streams

At any single time, a Wave 2 AP can communicate with the following MU-MIMO clients:
• four 1x1 clients
• two 2x2 clients
• one 2x2 client and two 1x1 clients
• one 3x3 client and one 1x1 client
A 4x4 Wave 2 AP delivers up to 33% greater performance than a Wave 1 AP that is 3x3 in both radio bands.

Client Compatibility

The UniFi AC HD AP is the first UniFi 802.11ac Wave 2 AP. Combining the performance increases from MU-MIMO technology and the use of 4x4 spatial streams, the UniFi AC HD AP delivers up to 125% greater performance than a typical Wave 1 AP.

Hardware

Easy Mounting

Its sleek design seamlessly integrates into any environment (all accessories included) and is compatible with existing UAP-AC-PRO mounts.

LED

Unique LED provisioning ring provides administrator location tracking and alerts for each device.

Dual-Gigabit Ethernet

Unique LED provisioning ring provides administrator location tracking and alerts for each device.

Enhanced Processing Power

The UniFi AC HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Power over Ethernet (PoE)

Includes PoE functionality. Each single-pack includes a PoE adapter.

PoE Standard

The UniFi AC HD AP is compatible with an 802.3at PoE+ compliant switch.
