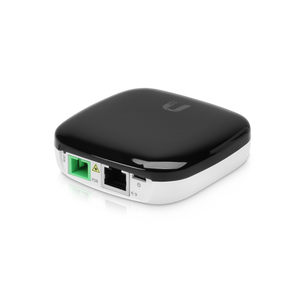

Ubiquiti UF-LOCO UFiber GPON CPE Gigabit Passive Optical Network Unit

Ubiquiti UF-LOCO UFiber GPON CPE Gigabit Passive Optical Network Unit

$54.99
SKU
UF-LOCO
Brand
Weight
0.50 LBS
Rating
0 Stars
Availability
Usually Ships in 24 Hours

Product Description

This UF-Loco UFiber Gigabit Passive Optical Network (GPON) from Ubiquiti Networks lets you share a high-speed Fiber connection with Gigabit-enabled devices. The UF-Loco comes equipped with a single GPON port and a single Gigabit Ethernet port, as well as a digital LED display, making it easy to view the status of the connection. Additionally, this GPON device supports downstream data rates of up to 2.488 Gb/s and upstream data rates of up to 1.244 Gb/s as well as 1490 nm downstream and 1310 nm upstream wavelengths. Installation is simple, as the PoE-compatible GPON device can be mounted on a wall for easy access.

Key Features

  • 1 x GPON Port
  • 1 x Gigabit Ethernet Port
  • 2.488 Gb/s Downstream GPON Speed
  • 1.244 Gb/s Upstream GPON Speed
  • 1490 nm Downstream Wavelength
  • 1310 nm Upstream Wavelength
  • Digital LED Status Indicators
  • 3.5W Max Power Consumption
  • 24V Passive PoE Power Method
  • Wall-Mountable

PRODUCT SPECIFICATIONS

UF-LOCO
Dimensions 76.5 x 76.5 x 26.4 mm
(3.01 x 3.01 x 1.04")
Weight 77 g (2.72 oz)
Networking Interfaces (1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN
Networking Interface Speeds (1) GPON WAN, ITU G.984,
2.488 Gbps Downstream,
1.244 Gbps Upstream
(1) GbE LAN, 10/100/1000 Mbps
Management Interface In-Band Ethernet PON
Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm
Power Method Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8)
Power Supply Micro-USB Power Adapter*:
5V, 1A
Max. Power Consumption 3.5W
Supported Voltage Range 4.7 to 5.3V
Processor Specs MIPS-32, 240 MHz
Memory Information 128 MB DDR3
Button (1) Reset
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
