Product Description

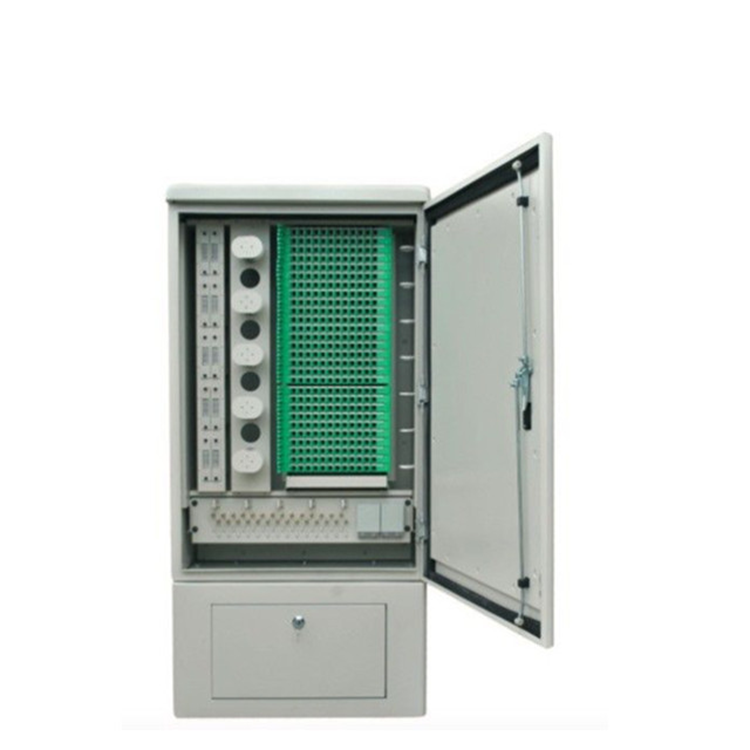

Outdoor 96 core SMC cabinet
Fiber optic cabinet
Fiber optic cabinet is applied to connect and dispatch fiber cable. It can place the PLC splitter inside and realize the terminal connection of main cable and distribution cable.
| Product Name | Fiber optic cabinet |
| Shape | Total enclosed structure, be in nice shape |
| size | 1030mm(H)*550mm(W)*310mm(D) |
| Material | SMC |
| Material characteristic | 1.wet-proof, water-proof, dust-proof, protection 2.SMC box or stainless steel box 3.With the safe and reliable function for fiber storage and protection4.Ground mounting |
| Specification | JZ-1388-96 |
| Material | SMC |
| Cores | 96/144/288 |
| Color | Grey black |
| Adapter installation | 96/144/288 (SC LC ) |
| Installation method | ground mounting |
| Dimension | 1030x550x310mm |
| No. of splice tray | 12 |
Features:
1.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
2.Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
3.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
4.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Application:
1. Widely used in FTTH access network.
2.Telecommunication Networks
3.CATV Networks Data communications Networks
4.Local Area Networks
