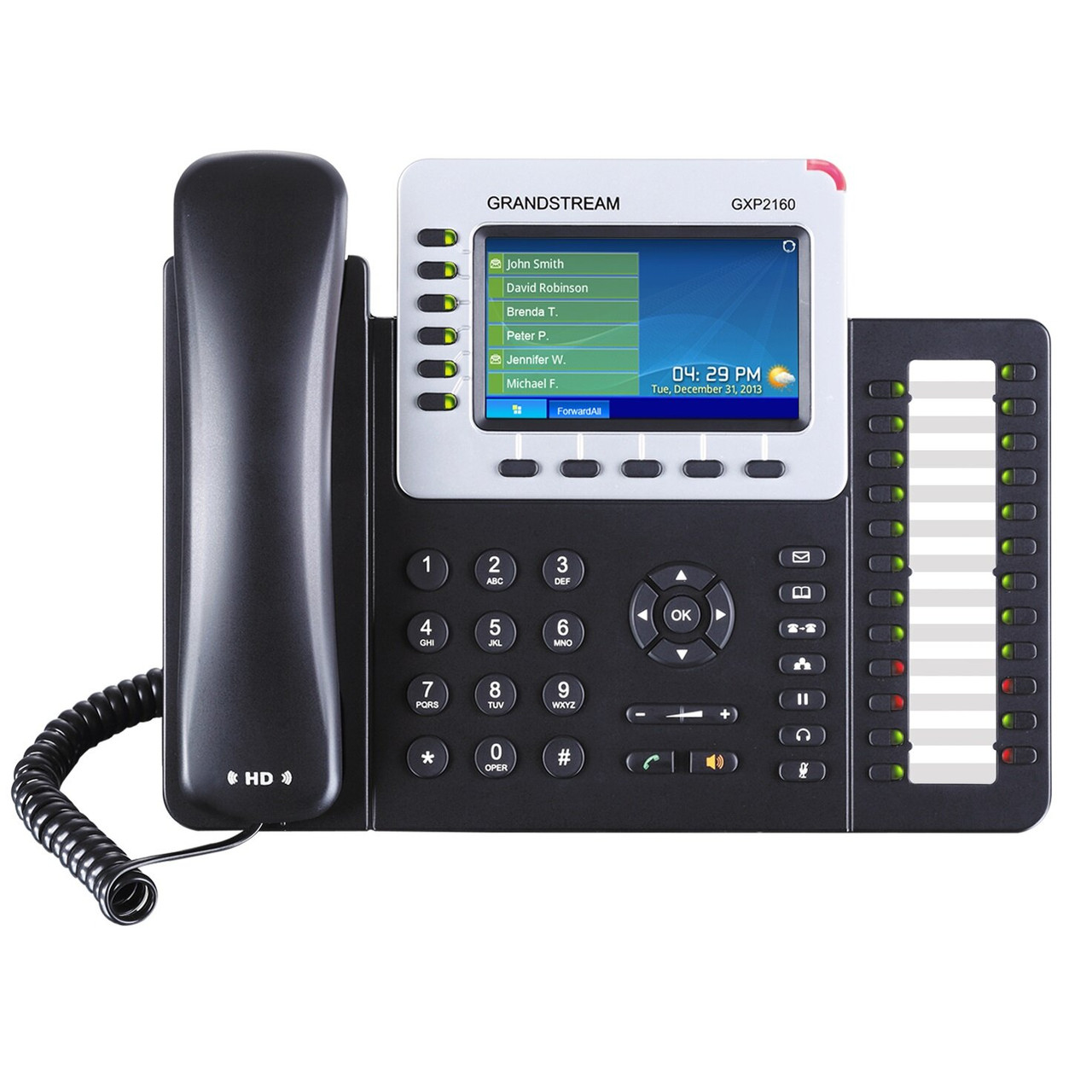

The GXP2160 provides an efficiency-focused endpoint with its vibrant display and intuitive BLF and speed-dial keys. Focus on handling more calls and reaching more customers by utilizing its 6 lines, 4.3” LCD screen and built-on physical 24 BLF/speed-dial keys. Easily monitor presence and status of other extensions to quickly transfer calls to the right destination. Equipped with dual Gigabit, PoE network ports, Bluetooth support, and a host of other features the GXP2160 brings call control to a new level.
As all Grandstream IP phones do, the GXP2160 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2160 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.
Features
- Supports 6 lines, 6 SIP accounts and 5-way voice conferencing
- 4.3 inch (480x272) color-screen LCD
- Dual Gigabit ports, integrated PoE
- HD audio on speakerphone and handset, 5 programmable context-sensitive soft keys
- 24 dual-colored BLF/speed dial keys
- Integrated Bluetooth
Specs
Protocols/Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, CDP/SNMP/RTCP-XR
Network Interfaces
- Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphic Display
- 4.3 inch (480x272) TFT color LCD
Bluetooth
Feature Keys
- 6 line keys with up to 6 SIP accounts, 24 speed-dial/BLF extension keys with dual-color LED, 5 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET,MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
Voice Codecs
- Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Auxiliary Ports
- RJ9 headset jack (allowing EHS with Plantronics headsets), USB
Telephony Features
- Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
Sample Applications
- Weather, currency, news, XML
HD Audio
- Yes, both on handset and speakerphone
Base Stand/Wall Mountable
- Yes, allow 2 angle positions
QoS
- Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
- User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language
- English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
Upgrade/Provisioning
- Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file, FTP/FTPS
Power & Green Energy Efficiency
- Universal power adapter included: Input: 100-240VAC; Output: ,+12V, 1.0A Integrated PoE (Power-over-Ethernet) 802.3af, Max power consumption: 6W
Physical
- Dimention: 275.5mm (W) x 206mm (L) x 46.5mm (H); Unit weight: 0.98kg; Package weight: 1.62kg
Temperature and Humidity
- Operation: 0 ~ 40ºC (32 ~ 104ºF ) Storage: -10°C to 60°C Humidity: 10 ~ 90% (non-condensing)
Package Content
- GXP2160 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide
Compliance
- FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1, EN62479 AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter)
)
