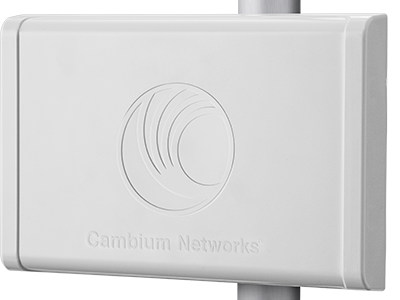

Cambium Networks - C050900D020A ePMP 2000 5GHz Beam Forming Smart Antenna

Cambium Networks - C050900D020A ePMP 2000 5GHz Beam Forming Smart Antenna

$299.95
SKU
C050900D020A
Weight
3.20 LBS
Rating
0 Stars
Availability
Usually Ships in 24 Hours

Product Description

ePMP has set the standard for high performance, scalability, and reliability in harsh interference environments all at a compelling price. ePMP 2000 is the next generation Access Point bringing interference tolerance to a whole new level with unique Hypure technology which combines Intelligent Filtering and Smart Beamforming to deliver new levels of performance in the face of interference.

The ePMP 2000 System consists of a high-performance, GPS Synchronized Access Point Radio with Intelligent Filtering, a new compact high-performance Sector Antenna, and an optional Smart Antenna.

Intelligent Filtering improves both receive and transmit performance. It protects the network from off-channel interferers with a filter that dynamically moves around the channel. On the transmit side, it protects the RF environment by reducing off-channel transmission noise.

Smart Beamforming drastically reduces the effects of on-channel interference. The System learns the locations of each served Subscriber Module and forms a narrow beam towards the desired Subscriber Module while that radio is transmitting in the uplink. This reduces the gain on the uplink for on-channel interferers that are transmitting at an azimuth angle different than the Subscriber Module, delivering performance gains never before seen.

Key Advantage:

  • Eliminate Uplink Interference: Smart Beamforming delivers dramatic performance improvements when dealing with strong co-channel uplink interference, maximizing network performance.
  • Consistent Performance in High Interference: By mitigating significant sources of interference, packet loss and retransmissions are kept to a minimum, keeping your network applications working at their best.
  • Improvement in Uplink and Downlink Performance: By eliminating packet loss and retransmissions resulting from cochannel uplink interference, TCP retransmissions are greatly reduced. Other applications also show significant performance benefits.

Cambium Networks’ ePMP 2000 takes interferencetolerant, high performance, and reliable wireless broadband to a new level with innovative technology and proven, deployed-worldwide equipment, keeping you and your customers happy for an affordable price.

ePMP 2000 is built from the ground up to provide high performance, reliably, in real-world interference-heavy environments. Powered by innovative Hypure™ technology, ePMP 2000 incorporates Smart Beamforming and Intelligent Filtering to help you deliver the services your customers expect in the face of heavy interference.

With the feature-rich ePMP foundation including frequency reuse enabled by GPS Synchronization, eFortify, 120 active subscribers per access point and 200+ Mbps of real-world achievable throughput, ePMP 2000 is designed, built and tested to reliably connect people, places, and things.

Example Use Cases

Wireless Service Providers (WISPs)

  • Rural connectivity
  • Municipal connectivity
  • Enterprise and campus connectivity

Enterprise

  • Wireless video surveillance networks
  • Industrial and mining applications
  • LAN extension

End-to-End Performance

ePMP encompasses a comprehensive range of subscriber modules, access points, and sector antennas to make sure your network performs at its best, from end-to-end.

Top Line Specifications

  • Reliable, consistent performance in real-world conditions
  • 5, 10, 20, and 40 MHz channel bandwidths
  • 200+ Mbps of real-world throughput
  • Up to 120 active subscribers per access point
  • Secure over-the-air communications (128-bit AES encryption)
  • Industry leading frequency reuse via GPS Synchronization
  • Configurable QoS for voice, video, and data
  • Up to 64km deployment range
  • Point-to-point and point-to-multipoint options (software configurable)
  • End-to-end cloud management with cnMaestro™

Why ePMP?

Consistent Performance
With industry-leading tolerance to handle outside interference, Automatic Transmit Power Control to control self-interference, and a proven worldwide ePMP MAC scheduling algorithm, ePMP provides consistent performance, no matter how many subscribers are connected. And thanks to Air Fairness, when one subscriber is performing poorly, it doesn’t drag the rest down.

Frequency Refuse
Take that precious spectrum and multiply it across your network. With frequency reuse enabled by GPS Synchronization, ePMP scales to more customers with less spectrum, letting you expand your business while keeping your customers happy. Deployed worldwide and proven over years, it’s the secret ingredient to a scalable network.

Return on Investment
Many operators find when they deploy a network, as it expands over time, they have to redesign it with new equipment once the number of subscribers reaches a certain point, ruining their return on investment plans. With ePMP, affordable doesn’t mean cheap; build your network to last, from the start.

Application Flexibility
Configurable Quality of Service for voice, video, and data lets you offer the services your customers want at the level of service they need. Combined with adaptable modes of configuration that let you support many combinations of bandwidth allocation and latency, a network built on ePMP can handle any application.

Security
Wireless networks are insecure, right? Well, they don’t have to be. With 128-bit AES encryption for all data transmitted across the wireless link, L2 and L3 firewall functionality, and secure management interfaces, ePMP won’t be the weak link in your security chain.

Reliability
By combining highly reliable software, hardware and protocols, ePMP is designed to provide the best service possible for your customers for the long term. Industrial design and industrial-grade components mean your network stays up.

What is Hypure?

ePMP 2000 uses innovative Hypure technology from Cambium Networks. It’s comprised of Smart Beamforming and Intelligent Filtering.


Smart Beamforming

With the optional ePMP 2000 Smart Antenna, Smart Beamforming virtually eliminates the impact of uplink co-channel interference. This has a dramatic effect on the network capacity, with up to 8x uplink throughput increases over ePMP 1000 in real-world conditions. By improving the uplink capacity, overall network performance is substantially increased.

Smart Beamforming dynamically creates a narrow, targeted beam to each subscriber, blocking out interference from other sources.

Intelligent Filtering
Built into the ePMP 2000 Access Point, Intelligent Filtering offers up to 20% uplink throughput increases over ePMP 1000 in real-world conditions. By blocking out adjacent channel interference, your network can focus on the signals it wants to hear rather than being distracted by all the noise around them.

Intelligent Filtering creates a dynamic filter, which wraps around the channel in use, shielding it from others.

ePMP 2000 Smart Antenna Specifications
Compatibility ePMP 2000 Access Point only
Spectrum
Channel Spacing 5150 – 5970 MHz (exact frequencies as allowed by local regulations)
Physical
Connectors to Access Point 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna)
Mounting Hardware Included for mounting to ePMP 5 GHz Sector Antenna (C050900D021A) Included for mounting to mast diameters 2” to 4” (5 cm to 10 cm) Up to +10 degree tilt
Physical Dimensions 13.1" (L) x 8.4" (W) x 1.8” (H) (33.3 cm x 21.3 cm x 4.6 cm)
Without Mounting Brackets
Weight 3.2 lbs. (1.5 kg)
Without Mounting Brackets
Environmental IP65
Radome Material UV Protected ABS
Operating Temperature -30° C to +55°C (-22° F to +131°F)
Power Consumption 2.5 W1 (provided by ePMP 2000 Access Point)
Environmental Cover Included Yes
Wind Loading Operational at ≤ 145km/hr, Survival at ≤ 209km/hr
