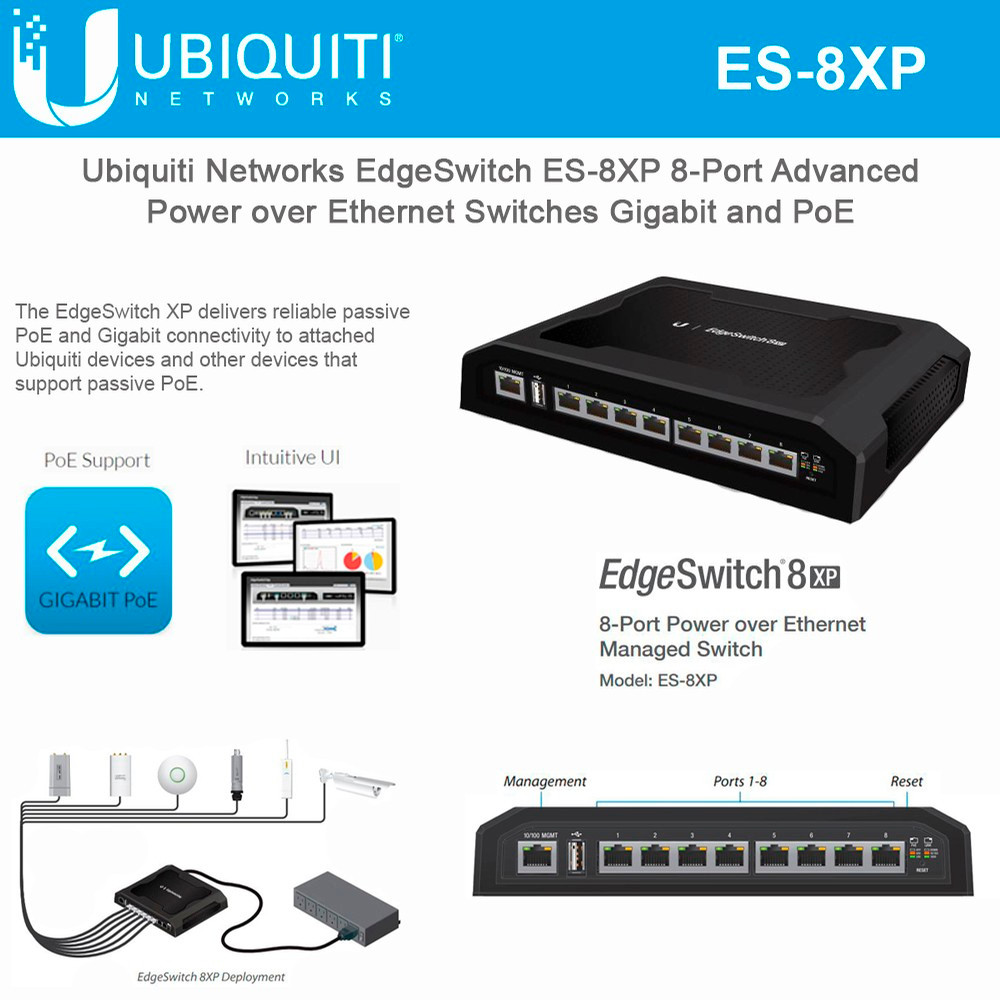

The ES-8XP EdgeSwitch XP 8-Port Advanced Gigabit PoE Managed Switch from Ubiquiti Networks is an industrial-strength, 8-port Gigabit switch with 150W power capability for powering 24V or 48V devices. The output voltage is controlled by the software. It delivers reliable passive PoE and fast 10/100/1000 Mb/s connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect the PoE devices, you need to enable PoE in the EdgeSwitch XP configuration interface. Each port can be individually configured to provide PoE, so that both PoE and non-PoE devices can be connected.
- 8 x 10/100/1000 Ethernet Data Ports
- 1 x 10/100 Ethernet Management Port
- MIPS 24K, 400 MHz Processor
- USB 2.0 Type A Port
- 64MB System Memory
- 8MB Code Storage
- 24V/48V Configurable Passive PoE
- PoE Configuration Interface
- Tough Full Metal & Rubber Casing
- CE, FCC, IC Certified
Intuitive Configuration Interface
System connection and management services
Virtual Local Area Network (VLAN) configuration
Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
Jumbo frame support
Clean Industrial Design
The EdgeSwitch XP is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).
Convenient PoE Support
The EdgeSwitch XP supports 24V or 48V passive PoE to power multiple devices on your network.
The EdgeSwitch XP delivers uptime performance equal to leading carrier or enterprise technology solutions.
The EdgeSwitch XP is purpose-built with robust mechanicals for industrial application use.
A Single Power Source
Featuring software-selectable output voltage control, the EdgeSwitch 8XP and 16XP models can power 24V or 48V devices.
Designed for efficient setup and control, the graphical user interface is easy to use and manages advanced Layer 2 features, including:
- Port monitoring
- System connection and management services
- Virtual Local Area Network (VLAN) configuration
- Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
- Jumbo frame support
- Ping Watchdog
- Configurable alerts
