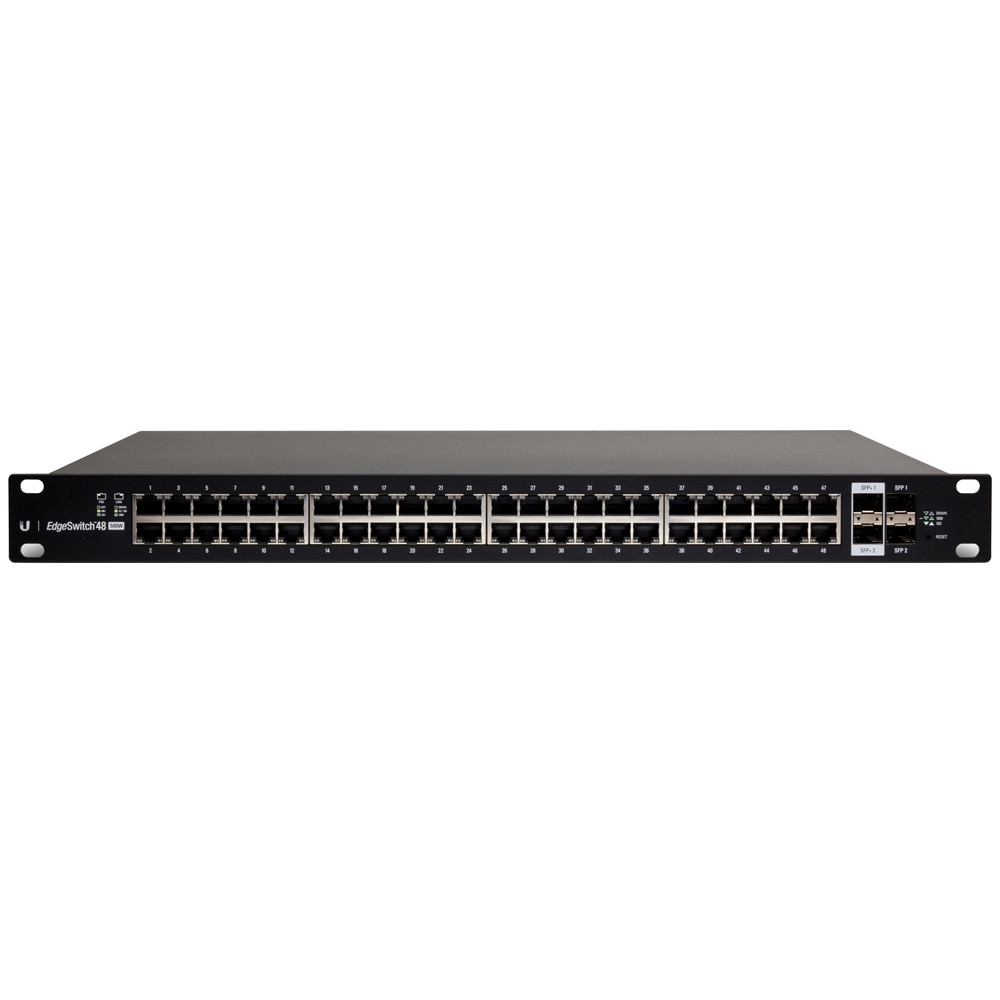

Along with enhanced networking capabilities, the EdgeSwitch ES-48-500W features optical fiber backhaul made available through the two SFP+ ports. These ports support uplinks of up to 10 Gb/s to ensure a smooth, consistent flow of data. You can also power your PoE compatible devices directly from the EdgeSwitch with support for auto-sensing IEEE 802.af/at 24 V passive PoE. All of the features of the EdgeSwitch can be easily managed through the included advance user interface. Administrators can configure and monitor their network through an intuitive graphical user interface or convert to the command-line interface available through telnet and SSH.
- 48 x 10/100/1000 Mb/s Ethernet Ports
- 2 x 1/10 Gb/s SFP+ Ethernet Ports
- 2 x 1 Gb/s SFP Ethernet Ports
- Power over Ethernet Compliant
- 70 Gb/s Non-Blocking Throughput
- 140 Gb/s Switching Capacity
- 500W Maximum Power Consumption
- Dedicated LED Per Port Indicators
- 1U High Rackmount Compatible
Advanced Switching Technologies
Comprehensive User Interface
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS • Static Routing, Policy-Based Routing
Managed PoE+ Gigabit Switch with SFP
Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch™ delivers robust performance, PoE+ support and intelligent switching for growing networks.
Powerful Enterprise Switch Models
The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
The EdgeSwitch™ provides top price/performance value: a full-featured, enterprise-class switch starting at $299 USD MSRP.
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
|Total Non-Blocking Throughput||18 Gbps||26 Gbps||26 Gbps||70 Gbps||70 Gbps|
|Gigabit RJ45 Ports||16||24||24||48||48|
|Max. Power Consumption||150W||250W||500W||500W||750W|
