Product Description

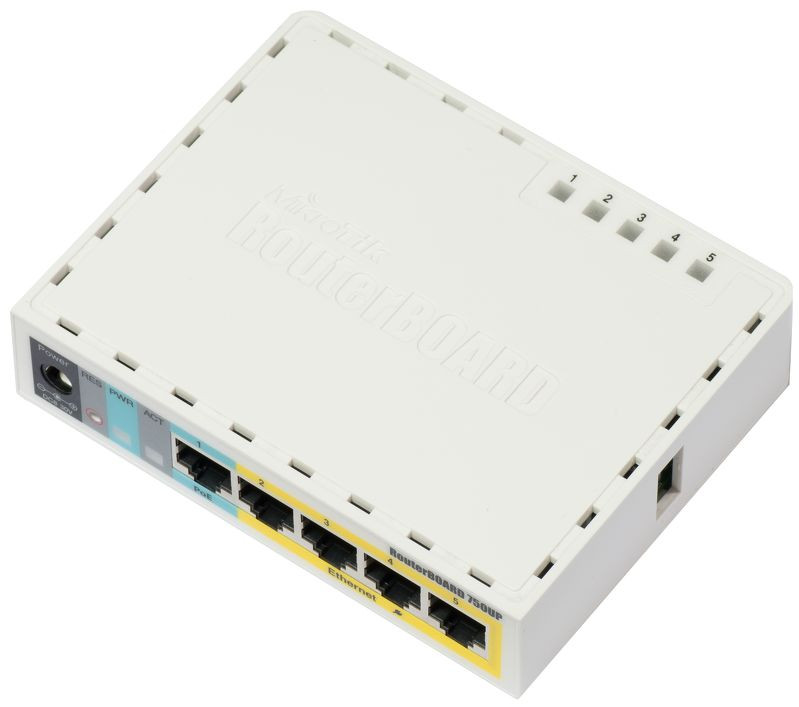

RB750UP is a small five port ethernet router in a nice plastic case, USB 2.0 port and PoE output. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 500mA per port, Ethernet ports are shielded.
It is affordable, small, good looking and easy to use. No more compromise between price and features - RB750 series has both! With it’s compact design and clean looks, it will fit perfectly into any SOHO environment.
Box contains: RB750UP, plastic case, 24v 2.5A power adapter
Product specifications
| Details | |
|---|---|
| Product code | RB750UP |
| CPU nominal frequency | 400 MHz |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 32 MB |
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 0 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | None |
| Number of USB ports | 1 |
| Memory Cards | 0 |
| Power Jack | 1 |
| 802.3af support | No |
| PoE out | Yes |
| PoE in | Yes |
| Supported input voltage | 8 V - 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | No |
| Dimensions | 113x89x28mm. Weight without packaging and cables: 129g |
| Operating System | RouterOS |
| Operating temperature range | -30C to +60C |
| License level | 4 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | AR7241-AH1A-R |
| Max Power consumption | 3W |
| SFP ports | 0 |
| SFP+ ports | 0 |
| USB slot type | USB type A |
| Number of chains | 0 |
| Serial port | None |
