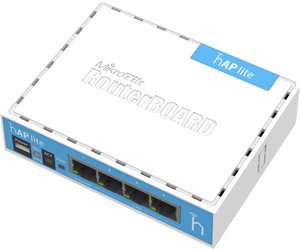

The RB941-2nD-TC is an ideal little device for your apartment, house or office. It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access in your network, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button. This device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others. All enclosed in a new tower case design.

The hAP lite TC is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license.

Product Specifications:

• CPU: QCA9531 650MHz CPU
• Size of RAM: 32MB
• 10/100 Ethernet ports: 4 w/ Auto-MDI/X
• Wireless chip model: QCA9531-BL3A-R
• Wireless standards: 802.11b/g/n
• Wireless cards: 10kV ESD protection on each RF port, WPS support via button
• Power input: 5V DC 0.7A power adapter
• License level: 4
• Antenna gain dBi: 1.5
• Max power consumption: 3W at 5V
• Number of chains: 2

Product Includes

• 1 x hAP lite
• 1 x Power adapter (5VDC 0.7A)

Specifications

Wireless capabilities

Ethernet

Powering

Certification & Approvals

Wireless specifications
