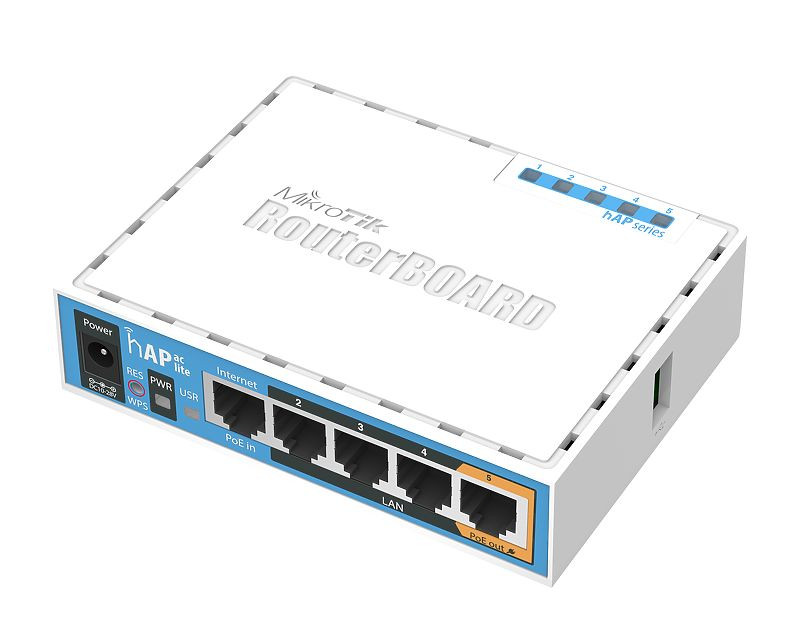

The MikroTik hAP ac lite is a super small dual concurrent access point, providing 2.4 and 5GHz WiFi coverage at the same time. You can power it from the power jack with the included power adapter or with passive PoE from a PoE injector (not included). The hap ac provides PoE output on port 5, which can power other PoE capable devices with the same voltage applied to the unit.
The hAP ac lite is equipped with a powerful 650MHz CPU, 64MB RAM, dual chain 2.4GHz on board wireless, five Fast Ethernet ports and a RouterOS L4 license. It comes pre-configured, so you can plug in the Ethernet cable, power it on, and start using your MikroTik network.
We have two versions available
- RB952Ui-5ac2nD (International) and RB952Ui-5ac2nD-US (USA). RB952Ui-5ac2nD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz - 5875MHz range (Specific frequency range can be limited by country regulations).
Product Specifications:
• Dual chain wireless 2.4GHz
• Single chain wireless 5GHz
• 650MHz CPU
• 64MB of RAM
• Five x 10/100Mbps Ethernet ports
• Passive PoE output on port 5
• USB port for 3G/4G modem
• 2.4GHz frequency range: 2412 - 2462MHz
• 5GHz frequency range: 5170 - 5250MHz and 5725 - 5835MHz
Specifications
| Details |
|---|
| Product code | RB952Ui-5ac2nD |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 113 x 89 x 28mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -30°C to 70°C |
| Suggested price | $49.95 |
Wireless capabilities
| Details |
|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9887 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| AC speed | AC750 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports | 5 |
Peripherals
| Details |
|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Powering
| Details |
|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 8 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
PoE-out
| Details |
|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input < 30 V) | 500 mA |
| Max total out (A) | 500 mA |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 23 | -93 |
| 54MBit/s | 20 | -75 |
| MCS0 | 23 | -93 |
| MCS7 | 19 | -71 |
| MCS9 | 16 | -63 |
)
