MikroTik RBmAPL-2nD GHz mAP lite access point 802.11bgn 2x2 PoE

MikroTik RBmAPL-2nD GHz mAP lite access point 802.11bgn 2x2 PoE

$34.29
SKU
RBmAPL-2nD
Brand
Weight
1.00 LBS
Rating
0 Stars
Availability
Usually Ships in 24 Hours

Product Description

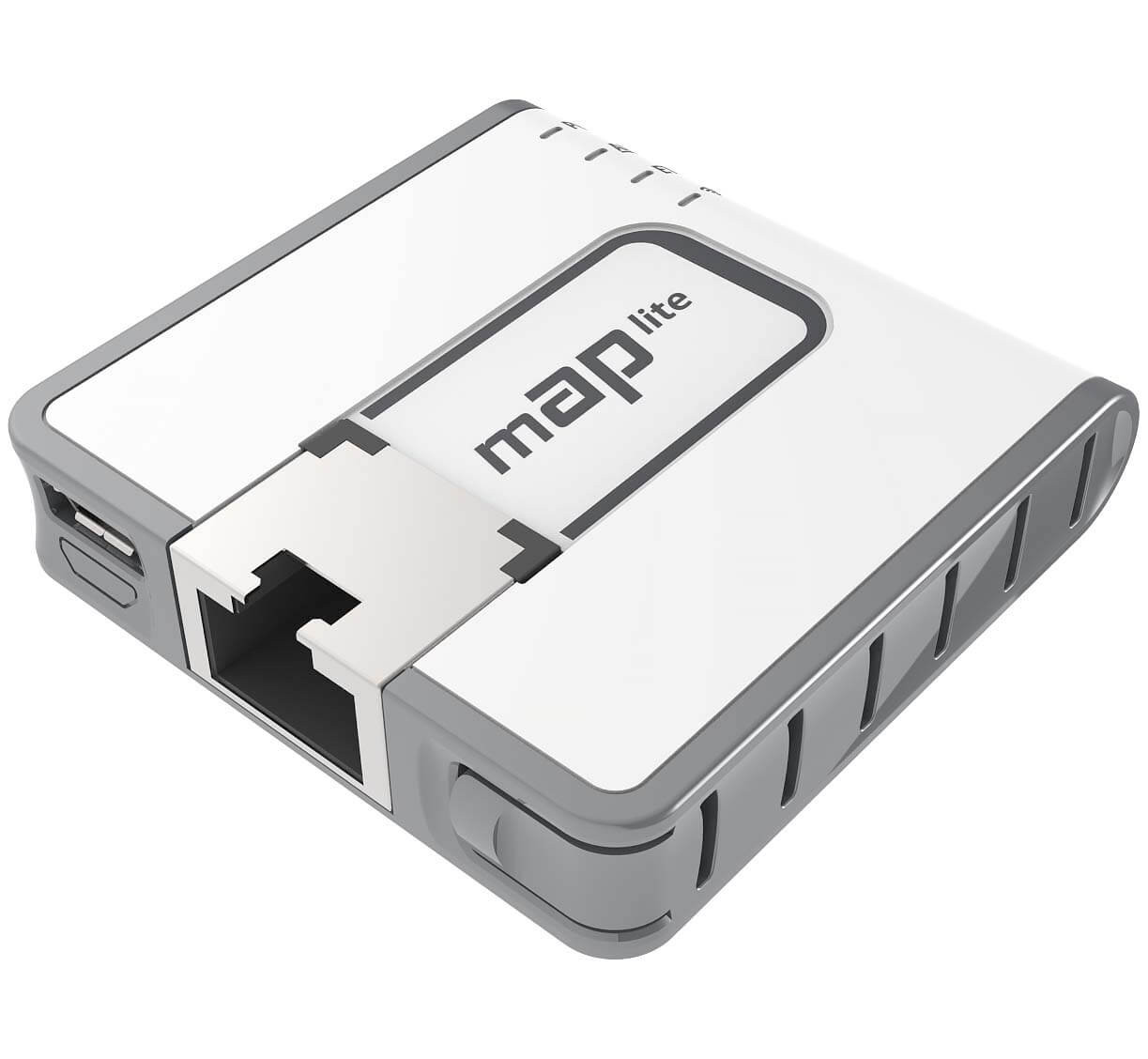

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.



Specifications

Details
Product code RBmAPL-2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 48x49x11mm
RouterOS license 4
Operating System RouterOS
PoE in 802.3af/at
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -30°C to 70°C
Suggested price $25.00


Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.5
Wireless 2.4 GHz chip model QCA9533
Wireless 2.4 GHz generation Wi-Fi 4


Ethernet

Details
10/100 Ethernet ports 1


Powering

Details
MicroUSB input Voltage 5-5 V
Number of DC inputs 2 (PoE-IN, MicroUSB)
Max power consumption 3.5 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 10-60 V


Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS


Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
