Mikrotik RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain

Mikrotik RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain

$59.99
SKU
RBcAP2nD
Brand
Weight
3.00 LBS
Rating
0 Stars
Availability
Usually Ships in 24 Hours
Shipping
Calculated at checkout

Sorry but this item is currently unavailable.

Please check back at a later stage.

Product Description

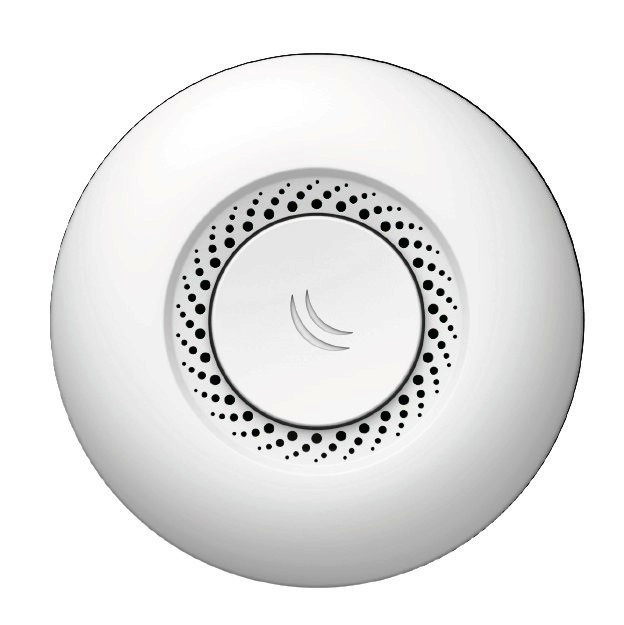

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.



Specifications

Details
Product code RBcAP2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 185mm diameter, 31mm height
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price $49.95


Powering

Details
PoE in 802.3af/at
PoE in input Voltage 11-57 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 4 W


Wireless

Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9533


Ethernet

Details
10/100 Ethernet ports 1


Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71



Included parts
