MikroTik wAP LTE Kit wireless access point - 802.11b/g/n 2G 3G and 4G connectivity

MikroTik wAP LTE Kit wireless access point - 802.11b/g/n 2G 3G and 4G connectivity

$110.95
SKU
wAP LTE Kit
Brand
Weight
3.00 LBS
Rating
0 Stars
Availability
Usually Ships in 24 Hours
Shipping
Calculated at checkout
Quantity

Product Description

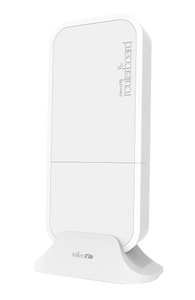

The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.

LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.

RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

Specifications

Details
Product code RBwAPR-2nD&R11e-LTE
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 185 x 85 x 30 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 60°C
Suggested price $119.00


Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 8 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V


Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)


Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4


Ethernet

Details
10/100 Ethernet ports 1


Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Details
Certification CE, FCC, IC, E-MARK, EAC, ROHS
IP IP54


Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71


Included parts:

  • 24V 0.8A power adapter
  • PoE injector
  • Plastic zip tie
  • 0.35m 4pin Automotive adapter cable
  • wAP mount bracket
  • wAP desktop stand
