Product Description

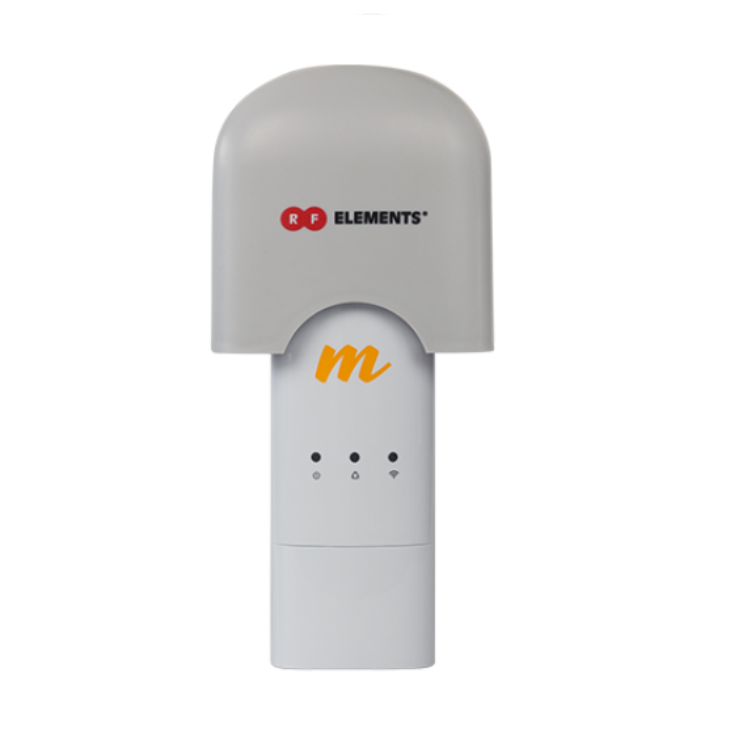

RF Elements TP-ADAP-C5C
TwistPort™ Radio Adaptor for Mimosa C5c
The TwistPort™ Adaptor for Mimosa C5c makes the radio compatible with all TwistPort™ Antennas. TwistPort™ Adaptors are equipped with our original quick-locking waveguide port. Connecting and disconnecting the C5c from the TwistPort™ Adaptor is very simple and requires no tools.
Specifications TP-ADAP-C5C
| Antenna Connection | TwistPort - Quick-locking Waveguide Port |
| Radio Connection | 2x Slide-On RP-SMA |
| Materials | Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic |
| Flame Rating | UL 94 HB |
| Temperature | -40°C to +60°C (-40°F to +140°F) |
| Wind Survival | 160 km/h |
| Weight | 0.40 Kg /0.87 lbs – single unit 0.50 Kg /1.1 lbs – single unit incl. package 11.5 Kg /25 lbs – carton (20 units) |
| Single Unit | Retail Box: 12.8 × 13.6 × 11.7 cm |
| 20 Units | Carton Box: 29 × 60.5 × 28.5 cm |
| PERFORMANCE | |
| Frequency Range | 5180 - 6400 MHz |
| Polarization | Dual Linear H + V |
| VSWR Max. | 1.8 |
| Impedance | 50 Ohm |
