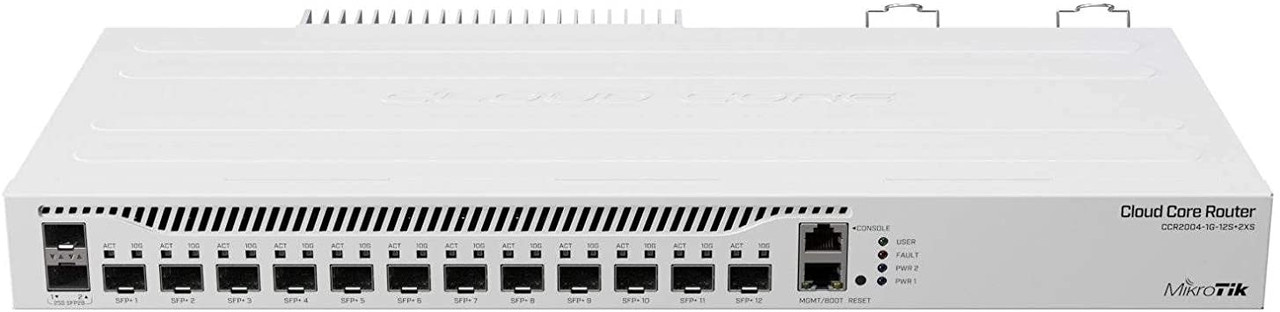

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.

CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC

Product Features

• Number of 1G Ethernet Ports: 1
• Number of 10G SFP+ ports: 12
• Number of 25G SFP28 ports: 2
• Number of AC inputs: 2

Product Specifications

• CPU: AL32400 1700 MHz
• CPU core count: 4
• Size of RAM: RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
• RAM type: DDR4
• Storage 128 MB, NAND
• Operating System: RouterOS
• Router license level: 6
• Supported input voltage: AC power supply 100 - 240 V
• Operating Temperature: -20°C to +60°C tested
• Max Power Consumption: 49 W

Specifications

Details
Product code	CCR2004-1G-12S+2XS
Architecture	ARM 64bit
CPU	AL32400
CPU core count	4
CPU nominal frequency	1700 MHz
Dimensions	443 x 224 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	4 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	$595.00

Powering

Details
Number of AC inputs	2
AC input range	100-240
Max power consumption	49 W
Max power consumption without attachments	32 W
FAN count	2

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP+ ports	12
Number of 25G SFP28 ports	2

Peripherals

Details
Serial console port	RJ45

Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS

Product Includes

(1) Cloud Core Router
(2) IEC Cords
(1) White Rackmount Bracket
(1) Fastening Set for Rackmount Case



Product Datasheet
