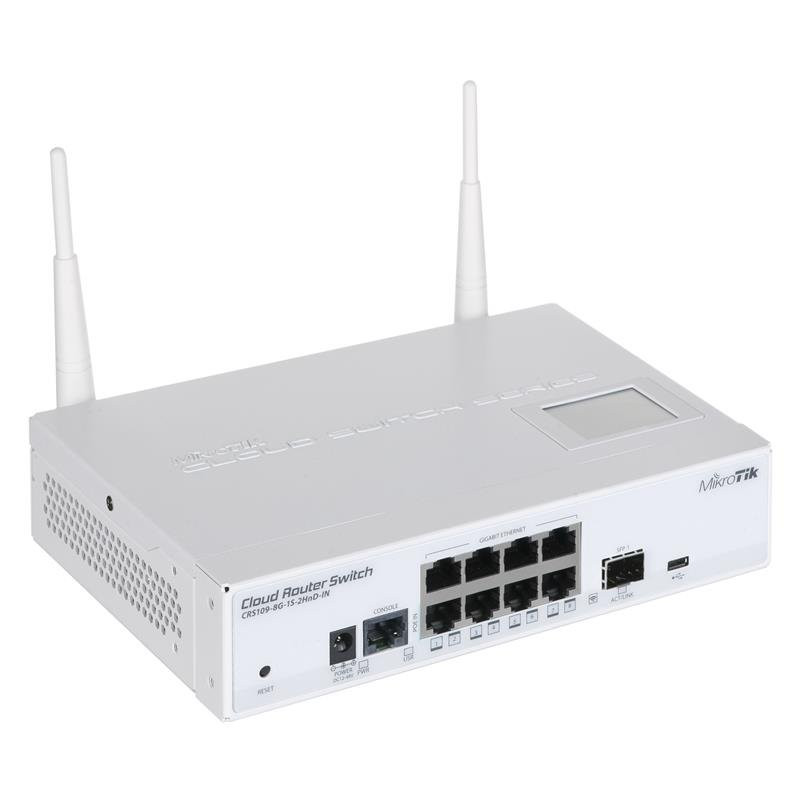

Cloud Router Switch is part of the new Smart Switch series by MikroTik. It is a fully functional Layer 3 switch and is powered by the familiar RouterOS. All the specific switch configuration options are available in a special menu, but ports can also be removed from the configuration and used for routing purposes.
What’s more - this device has a built in 2.4GHz wireless access point, which means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device. Ideal for medium/small businesses and offices. It has 8 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.
Product Features
• Fully manageable L3 switch with full wire speed switching
• Ports configurable as a switch, or for routing
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router
• Built in 802.11b/g/n Wireless AP 1000mW
• Desktop case
• Color touchscreen LCD
Specifications
| Details |
|---|
| Product code | CRS109-8G-1S-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 200 x 142 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| PoE in | Passive PoE |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 65°C |
| | |
Powering
| Details |
|---|
| 802.3af support | yes |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| Max power consumption | 13 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-57 V |
Wireless specifications
| Details |
|---|
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details |
|---|
| SFP DDMI | yes |
| SFP ports | 1 |
Peripherals
| Details |
|---|
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1.5 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, EAC, ROHS |
| IP | IP20 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 29 | -97 |
| 11MBit/s | 28 | -90 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 25 | -76 |
| MCS0 | 30 | -96 |
| MCS7 | 23 | -73 |
Product Includes
- CRS109-8G-1S-2HnD-IN Cloud Router Switch
- 24V 0.8A Power Adapter
- microUSB cable
)
