Product Description

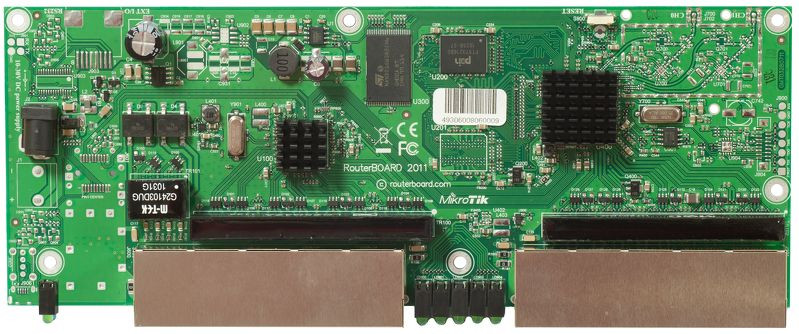

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011L is the most basic model, with five Gigabit ethernet ports, five Fast ethernet ports, power jack and PoE support.
It’s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.
If you need low-cost Router with ten Ethernet ports for your OEM application, RB2011L is the way to go!
Product specifications
| Details | |
|---|---|
| Product code | RB2011L |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| Architecture | MIPS-BE |
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 0 |
| PoE in | 8-30V DC on Ether1 |
| Voltage Monitor | No |
| PCB temperature monitor | No |
| CPU temperature monitor | No |
| Dimensions | 214mmx86mm |
| Operating System | RouterOS |
| Operating temperature range | -35C to +65C |
| License level | L4 |
| Current Monitor | No |
| CPU | AR9344-DC3A |
| Max Power consumption | 6W |
| SFP ports | 0 |
| Number of chains | 0 |
