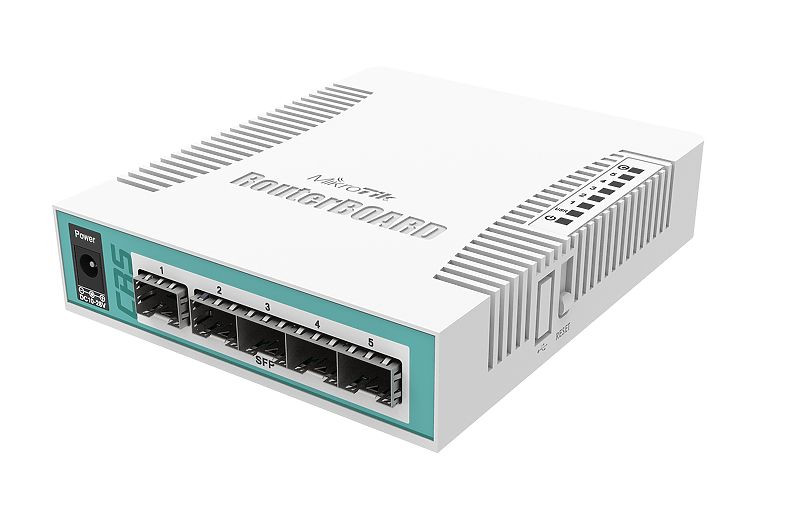

The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
At $59 this product provides a market-leading solution for connecting up to six SFP devices.
Product Specifications
• CPU: QCA8511 400 MHz
• Size of RAM: 128 MB
• Storage Type: Flash
• SFP: 5 x 1.25G Ethernet SFP cage (Mini-GBIC; SFP module not included). DDMI support
• Combo Port: 1 (Gigabit Ethernet / SFP)
• PoE In: Yes
• License Level: 5
• Operating System: RouterOS
• Max Power Consumption: 11 W
• LEDs: 9 x LEDs (1 x user LED)
• RJ45
Specifications
| Details |
|---|
| Product code | CRS106-1C-5S |
| Architecture | MIPSBE |
| CPU | QCA8511 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 114 x 137 x 29mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $59.00 |
Powering
| Details |
|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 11 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-30 V |
Ethernet
| Details |
|---|
| Ethernet Combo ports | 1 |
Fiber
Peripherals
| Details |
|---|
| Serial console port | RJ45 |
Certification & Approvals
| Details |
|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
- MikroTik Cloud Router Switch
- 24V 0.8A Power Adapter
)
