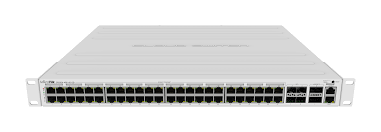

The MikroTik CRS354-48P-4S+2Q+RM Cloud Router Switch is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. This powerful switch has 48x 1G RJ45 ports and 4x 10G SFP+ ports. There are also 2x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40Gbps devices. The total non-blocking throughput is 168Gbps, switching capacity is 336Gbps and the forwarding rate reaches 235Mpps.
Product Features
• 10/100 Ethernet ports: 1
• 10/100/1000 Ethernet ports: 48
• 10G SFP+ ports: 4
• 40G QSFP+ ports: 2
• Supported input voltage: AC power supply 100 - 240 V
• Serial port: RJ45
• Architecture: MIPSBE
• Certification: CE/RED, EAC, ROHS
Product Specifications
• Product Code: CRS354-48P-4S+2Q+RM
• CPU: QCA9531, 650 MHz
• Size of RAM: 64MB
• Storage: 16MB flash
• Dimensions: 297 x 443 x 44 mm
• Operating temperature: -20°C .. +60°C
• Operating system: RouterOS (License level 5)
• Max power consumption: 60W
Specifications
| Details |
|---|
| Product code |
CRS354-48P-4S+2Q+RM |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
443 x 382 x 44 mm |
| RouterOS license |
5 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-20°C to 60°C |
| Suggested price |
$899.00 |
Powering
| Details |
|---|
| Number of AC inputs |
1 |
| AC input range |
100-240 |
| Max power consumption |
800 W |
| Max power consumption without attachments |
85 W |
| FAN count |
4 |
PoE-out
| Details |
|---|
| PoE-out ports |
Ether1-Ether48 |
| PoE out |
802.3af/at |
| Max out per port output (input 18-30 V) |
1000 mA |
| Max out per port output (input 30-57 V) |
570 mA |
| Total output current |
27A at 26V OR 13.2A at 53V |
| Total output power |
700W |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports |
1 |
| 10/100/1000 Ethernet ports |
48 |
Fiber
| Details |
|---|
| SFP+ ports |
4 |
| Number of 40G QSFP+ ports |
2 |
Peripherals
| Details |
|---|
| Serial console port |
RJ45 |
Other
| Details |
|---|
| CPU temperature monitor |
Yes |
| Current Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
|---|
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
Product Includes
- CRS354-48P-4S+2Q+RM
- (2) IEC cords
- Screw and feet kit
- Rackmount ears
- Cable management brackets
)
