Product Description

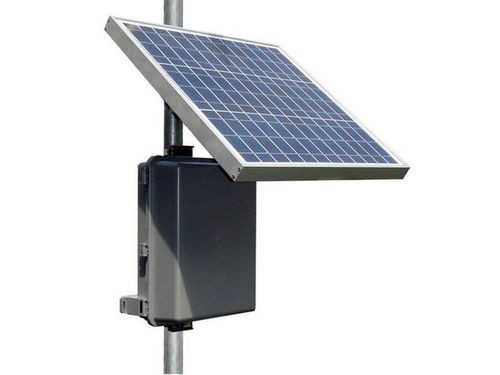

The RemotePro® PL series (RPPL) outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof Polycarbonate enclosures hold up to four 12V 8.5AH batteries. The enclosures are hinged and gasket sealed. They can accept a padlock of tamper seal.
The enclosures can be mounted to a wall or pole with the included mounting bracket system.
The high quality solar panels have a 25 year power output guarantee. The 30W solar panels can be mounted to a 51mm to 101mm (2" to 4") diameter pole or alternately to a wall with the included bracket kit.
Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve unregulated sealed lead acid batteries. Most of the RPPL systems include a controller with built in POE inserter and DCDC converter to supply 24V or 48V POE from the 12V or 24V battery system. Enclosures have multiple ports for CAT5/6 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.
Batteries are an Advance Glass Matt (AGM) type which have good all temperature performance.
Key Features:
- RemotePro Remote Solar Power System, 30W Solar, 24V 18Ah 432Wh Batt, 8W Continuous Power, 24V 30W Passive PoE out
- 24V 8A PWM Solar Charge Controller with Load Controlled 24V 30W Passive PoE out + 24V 1.5A Aux out
- Supports Up to 8W Continuous Power with 6hrs Peak Sun
- 2-4" Pole/Wall Mount Weatherpoof Lockable UV Resistant Polycarbonate Enclosure and Side of Pole Solar Mount
- Compact Size for Low Power Applications
Features
- Complete Remote Power Solution for Off-Grid operation
- Weatherproof, UV resistant, outdoor enclosures
- Enclosures can be Wall or Pole Mounted
- High Performance Valve Unregulated Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Remote Lighting
- Backup Power Systems
Specs
| Rated Power Generation | 8W |
| Reserve Time @ Rated Power | 27hrs |
| POE Output Voltage (DC) | 24V 1.2A |
| Secondary Volts Out (DC) | 24V 1.5A |
| Battery Capacity (Amp Hrs) | 34Ah |
| Battery Voltage (DC) | 24V |
| Battery Type | Valve Unregulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
| Battery Life | 5 Years |
| Controller Type | Dual Input: Solar/POE, Dual Output: Battery Voltage/POE with DCDC Converter |
| Overcharge Protection | 28.6V |
| Over-discharge protection | 22.0V |
| Over-discharge recovery volts | 24.5V |
| Controller Self Consumption | < 0.5W |
| Enclosure Type | Polycarbonate |
| Enclosure External Size | 17.5 x 12.5 x 6” (445x318x152mm) |
| Enclosure Internal Size | 14 x 10 x 5” (356x254x127mm) |
| Solar Panel Dims | 26” X 16” (654 x 401mm) |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) |
| System Weight (no batteries) | 22lb (10kg) |
| Battery Weight | 22lb (10kg) |
| Wind Speed Rating | 110MPH (49m/s) |
| Warranty | 3 Years |
