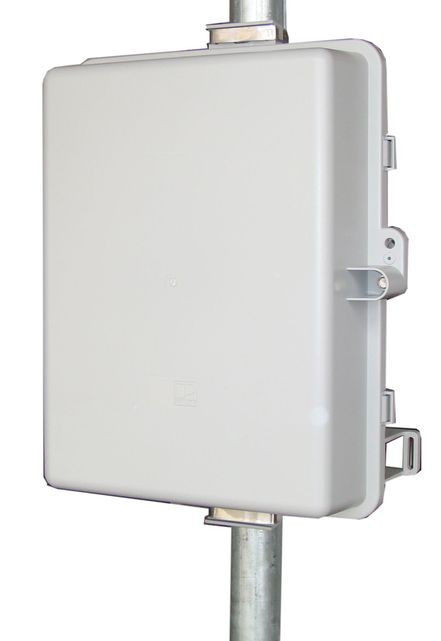

Tycon Systems UPS-PL1224-36 UPSPRO - 12V Battery, 24V POE Backup System-Solar Ready

Tycon Systems UPS-PL1224-36 UPSPRO - 12V Battery, 24V POE Backup System-Solar Ready

$319.95
SKU
UPS-PL1224-36
Weight
34.00 LBS
Rating
0 Stars
Availability
Usually Ships in 24 Hours

Product Description

The UPSPro® series outdoor systems are designed for applications that require a backup power source in order to maintain uninterrupted service in the event of AC power failure. The system is powered over a CAT5 network cable via Power over Ethernet (PoE) using a Power Supply and PoE Inserter (included). Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which is the main cause of outdoor equipment failure.

Models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the Power Supply and PoE Inserter.

A typical 250mW wireless access point with average power consumption of 3.5W will run 24 hours on a 8.5Ah battery at room temperature or 16 hours at -20 deg C.

12V Battery, 24V POE, 12V Secondary Output, 36Ah Battery Capacity, Solar Ready Outdoor UPS System

  • Protects sensitive electronics from damaging power line surges
  • Provides 24hour battery backup @ 14W load or 12 hours @28W load
  • Powered Over CAT5 Ethernet cable
  • 24V POE voltage, 12V Secondary wire terminal output

Customer electronics operate from battery power so they are isolated from damaging power line surges. The batteries are continuously charged via the POE input and/or solar power.

Features include a battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc.

Features

  • Weatherproof, UV resistant, outdoor enclosures
  • Powered over CAT5 cable using Passive POE and/or Solar
  • Generous interior space for customer electronics
  • Wall or Pole Mounting
  • Isolates Customer Equipment from Power Line Surges
  • High Quality AGM VR Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge

Applications

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Mission critical outdoor power
  • Backup Power Systems

Specs

POE Output Voltage Available (DC)

24V

Available Capacities (Amp Hours)

34Ah

Total Output Power

30W

Maximum POE Input Voltage

57V

Battery Voltage (DC)

12V

Battery Type

Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)

Battery Life

5 Years

Controller Type

Dual Input Solar/POE, PWM, 12V 8A

Max Solar Panel Size 135W

Overcharge Protection

14.4V

Over-discharge protection

11.0V

Over-discharge recovery voltage

12.0V

Controller Self Consumption

<0.5W

Charging POE Power Supply

120/220VAC In ; 24VDC 60W Out

Enclosure Type

Polycarbonate

Enclosure External Size

17.5 x 12.5 x 6”

(445 x 318 x 152mm)

Enclosure Internal Size

14 x 10 x 5”

(356 x 254 x 127mm)

Space available for Customer Electronics

3 x 5 x 3”

(76 x 127 x 76mm)

Operating Temperature

-30°C to +60°C (-22°F to 140°F)

System Weight (without batteries)

4lb (1.8kg)

Battery Weight (each)

5.5lb (2.5kg)

Warranty

3 Years

SPEC SHEET|  USER GUIDE
