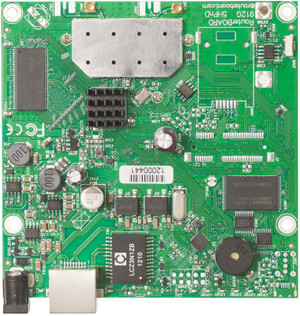

The RB911G-5HPnD is a small wireless router wtih an integrated high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds. The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
Product Specifications:
• CPU: Atheros AR9342 600Mhz network processor
• Memory: 32MB DDR onboard memory
• Storage: onboard NAND memory chip
• Ethernet: One Gigabit port with Auto-MDI/X
• Wireless: Built in 5Ghz, AR9283 802.11a/n, 2 x MMCX connectors
• Power: PoE 8-30V DC on Ether1 (non 802.3af). Power jack: 8-30V DC
• Operating System: RouterOS Level 3 (supports wireless CPE/PtP mode)
• Operating Temperature: -22°F to 140°F (-30°C to 65°C)
- RB911G-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB911G-5HPnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
| Details |
|---|
| Product code | RB911G-5HPnD |
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 105x105mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| PoE in | Passive PoE |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $55.00 |
Powering
| Details |
|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 11 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
Wireless specifications
| Details |
|---|
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Wireless 5 GHz chip model | AR9342 |
| Wireless 5 GHz generation | Wi-Fi 4 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 30 | -96 |
| 54MBit/s | 27 | -78 |
| MCS0 | 30 | -96 |
| MCS7 | 26 | -75 |
)
